X700, Drive Units

Economical • Cost Effective • Low Noise

X700 Disperser is an economical disperser with a rotational speed ranging from 5,000 to 28,000 rpm. lt can handle sample liquids from 0.5ml to 8,000 ml. with a low-noise design, it is compatible with various sizes and types of dispersion tools and can quickly complete operations such as dispersion, homogenization, emulsification, suspension and mixing. lts outstanding cost performance and flexible configuration make it an ideal choice for analytical laboratories in chemistry, biology, pharmaceuticals and other fields.

Description

Cost performance

  • Economy, stable and reliable, widely used

  • High-performance motor, powerful, efficient, low-noise

  • Swiss WIB drive bearings, high durability

Humanized

  • Wide speed range for low & high-speed homogenization

  • ClickLock quick-plug interface makes it convenient and fast to install tools

Dispersion Tools

  • 50 types of tools to meet the needs of diverse samples (standard lserrated lfiber lturbulent l emulsified , etc.)

  • Specially made PolyflonTM PTFE shaft sleeve, excellent wear resistance and chemical stability

  • Resistant to chemical, steam and dry heat sterilization

Quality Assurance

  • CE Certified; 2 Year warranty

Technical Data

ModelX700
Cat. No. 22237.02

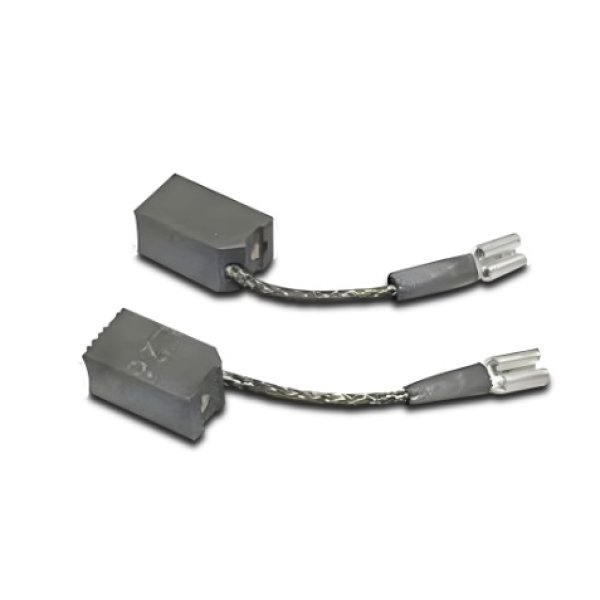

Drive MotorCarbon Brush
Input/Output Power600/380W
Speed Range5000~28000rpm; 6th Gear
Speed DisplayScale in Dication
Speed ControllerPotentiometer
Volume  Range(H₂O)0.5~8000ml
Maximum Viscosity4500mPa.s
Maximum Line Speed28.8m/s
Blade DiameterØ5,7,10,12,14,18,20,25,30mm
No-load Noise69dB(A)
Sample-contacting MaterialAISI 316L/PTFE
Contact with Sample Solution PH2~13
Processing TypeBatch
Arm DiameterØ13mm
Arm Length210mm
Dimensions(Driver)70×70×235mm
Weight1.5kg
Working Environment5~40℃,≤85%RH
Rated VoltageAC 220~240V,50/60Hz
Protection LevelIP 20
Warranty Period2 Years


Accessories

Dispersion Tools

Stands
