X4000, Drive Units

High Power • Proprietary Wear-resistant Tools • Preferred for Massive Processing

X4000 batch disperser is equipped with a 1800W high-power motor and has a maximum Volumerange of up to 40L. It is specially designed for strict laboratory research and development as wellas small-batch production. The dispersion tools with a double-bearing design operates morestably. It combines outstanding driving performance and durability, easily completing various fineprocess operations such as dispersion, homogenization, emulsification, suspension and mixing. Itis a reliable and efficient solution for researchers and engineers.

Description

Outstanding Quality

  • High-performance motor, powerful, efficient and moredurable

  • Low excitation impedance, low heat generation duringlong-term operation

Speed

  • Load constant speed tech, dynamic viscositycompensation for stable speed

  • Wide speed range for low & high-speedhomogenization

Safety

  • Soft start ensures smooth start-up and motorprotection

  • PTC temperature monitoring, motor overheat protection,safe and reliable

  • ClickLock quick-plug interface makes itconvenient andfast to install tools

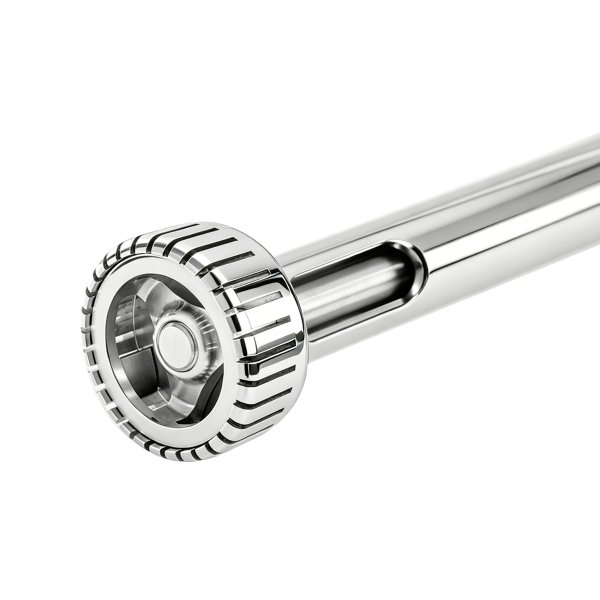

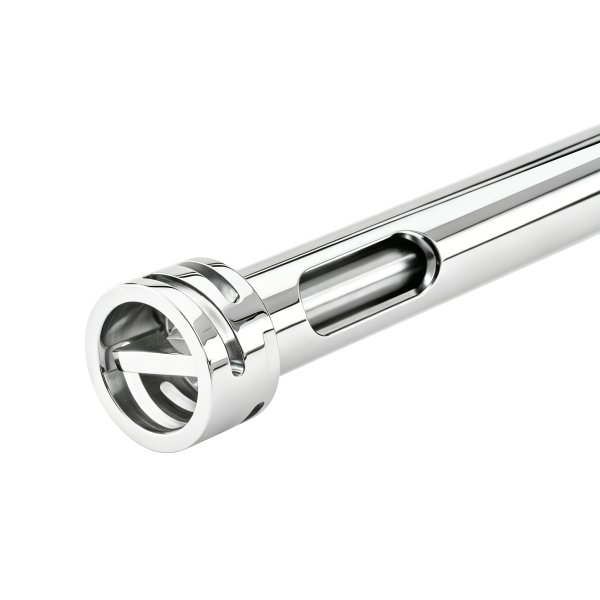

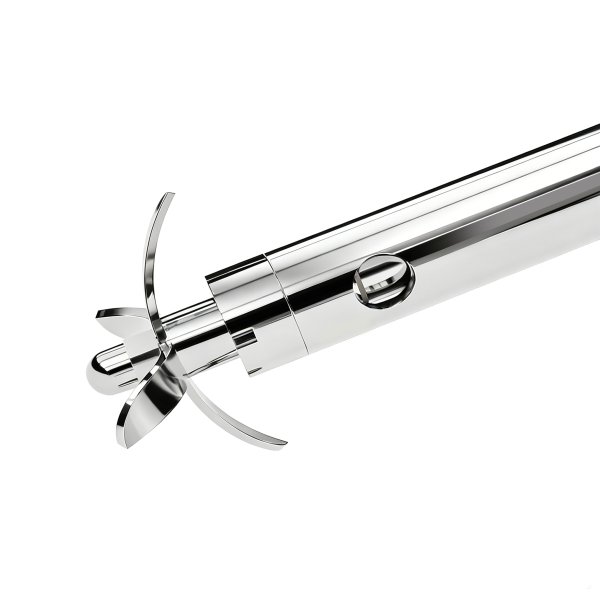

Dispersion Tools

  • 40 types of tools to meet the needs of diverse samples(standard /serrated /fiber /turbulent /lemulsified, etc.)

  • Specially made Polyflon PTFE shaft sleeve, excellentwear resistance and chemical stability

  • Resistant to chemical, steam and dry heat sterilization(excluding ball bearings)

Quality Assurance

  • CE certification; 3-year warranty

Technical Data

ModelX4000
Cat. No.  22272.02

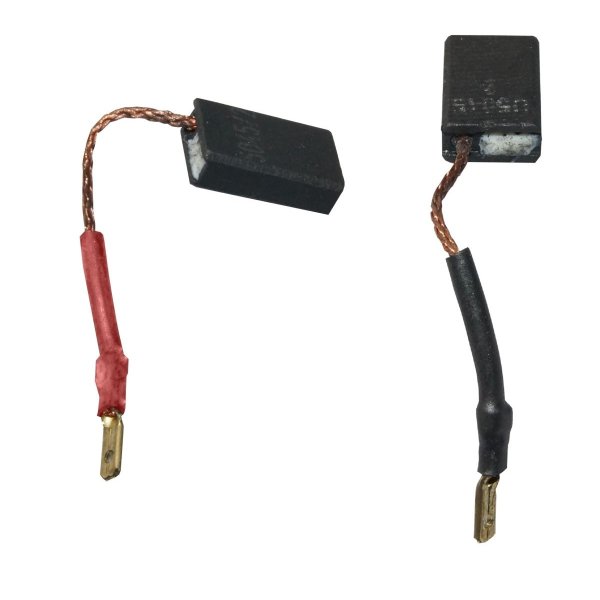

Drive MotorCarbon Brush
Input/ Output Power1800/1200W
Speed Range2500~23500rpm; 6th Gear
Speed DisplayScale Indication
GovernorMicroprocessor
Soft StartSupport
Overheat ProtectionSupport
Overload ProtectionSupport
Volume Range(H₂O)100~40000ml
Maximum Viscosity6500mPa.s
Maximum Line Speed40m/s
Blade DiameterØ25,30,35,45,55,60mm
No-load Noise75dB(A)
Sample-contacting MaterialAISI 316L/PTFE
Contact With Sample Solution PH2~13
Processing Type*Batch/Continuous Type
Arm Diameter16mm
Arm Length260mm
Dimensions(Driver)104×95×330mm
Weight5.1kg
Working Environment5~40℃,≤85%RH
Rated VoltageAC 220~240V,50/60Hz
Protection LevelIP 20
Warranty Period3 Years


Accessories

Dispersion tools

Stands

Parts
