CBT25/S45S, Standard, Ø45mm

V-shaped multi-tooth stator and double-edged tooth-shaped rotor combination design, achieving efficient coarse shearing

Suitable for the shearing, dispersion, dissolution, mixing and homogenization crushing of most samples

Modular design, with a single dispersion shaft, allows for the arbitrary combination of various types of dispersion tools, saving costs

High concentricity, stable and reliable operation, reduced wear of the bushing, and extended service life

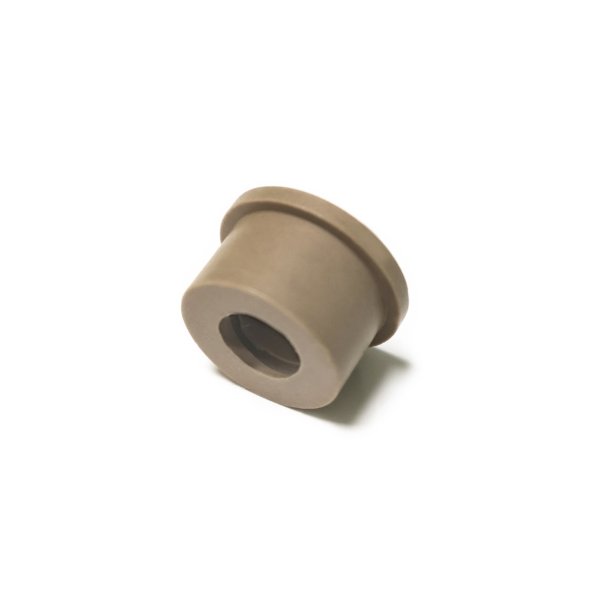

Special Polyflon™ PTFE bushings, featuring excellent wear resistance and chemical stability

Optional Sleeve-Alloy™ alloy bushings are available, which are maintenance-free and meet the requirements of high-speed operation

High-precision manufacturing, precise tolerance control, combined with scientific fluid dynamics design, resulting in outstanding material processing performance

Made of sanital-grade stainless steel 316L and treated with electrolytic passivation, it is endowed with excellent corrosion resistance

The inner and outer surfaces have been subjected to physical and electrolytic composite polishing, resulting in high surface finish, easy cleaning and no residue of materials

Multiple types of dispersion tools are available (standard/ sawtooth/ fiber/ emulsified/ turbulent/ dissolved, etc.) to meet the processing requirements of different samples

Multiple diameter dispersion tools are available (Ø25-65mm), with processing capacities ranging from 100ml to 50L

It can withstand chemical sterilization, moist heat sterilization and dry heat sterilization (except rolling bearings)
