X2000, Drive Units

Compact Design • Precise Constant Speed • Laboratory Benchmark

X2000 batch disperser,  500W motor, compact and exquisite design, wide speed range of 3,500-30,000 rpm, volume Range from 0.5ml to 4,500ml sample liquid. Equipped with a load constant speed and overheat protection system, it can efficiently, safely and reliably complete operations such as dispersion, homogenization, emulsification and mixing, and ensure the high repeatability of experimental results. lt is a classic device in the fields of laboratory analysis, quality control and sample preparation.

Description

Outstanding Quality

■ High performance motor, powerful, efficient and more durable

■ Low excitation impedance, low heat generation during long term operation

■ Compact structure and light weight, only 1.2 kg

Speed

■ Load constant speed tech, dynamic viscosity compensation for stable speed

■ Wide speed range for low & high speed homogenization

Safety

■ Soft start ensures smooth start up and motor protection

■ PTC temperature monitoring, motor overheat protection, safe and reliable

■ ClickLock quick plug interface makes itconvenient and fast to install tools

Dispersion Tools

■ 50 types of tools to meet the needs of diverse samples (standard lserrated lfiber lturbulent lemulsified , etc.)

■ Specially made PolyflonTM PTFE shaft sleeve, excellent wear resistance and chemical stability

■ Resistant to chemical, steam and dry heat sterilization

Quality Assurance

■ CE certification; 3-year warranty

Technical Data

ModelX2000
Cat. No.  22263.02

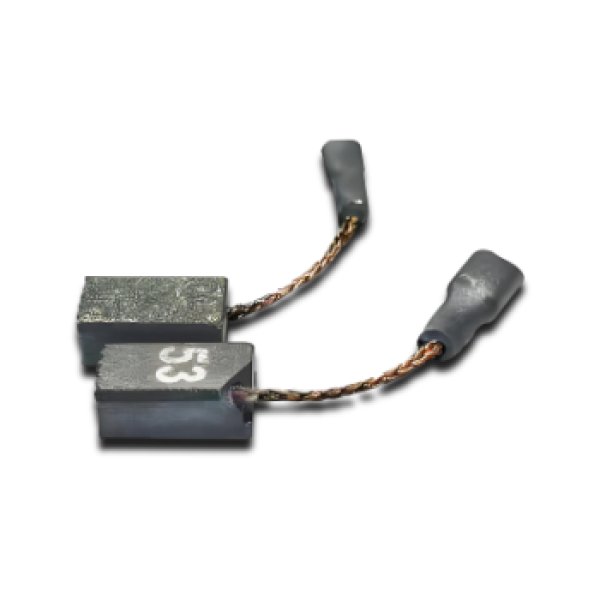

Drive MotorCarbon Brush
Input/Output Power500/300W
Speed Range3500~30000rpm; 6th Gear
Speed DisplayScale Indication
GovernorMicroprocessor
Soft StartSupport
Overheat ProtectionSupport
Overload ProtectionSupport
Volume Range(H₂O)0.5~4500ml
Maximum Viscosity5000mPa.s
Maximum Line Speed26m/s
Blade DiameterØ5,7,10,12,14,18,20,25mm
No-load Noise78dB(A)
Sample-contacting MaterialAISI 316L/PTFE
Contact with Sample Solution PH2~13
Processing TypeBatch/Continuous Type
Arm Diameter13mm
Arm Length210mm
Dimensions(Driver)58×58×238mm
Weight1.2kg
Working Environment5~40℃,≤85%RH
Rated VoltageAC 220~240V,50/60Hz
Protection LevelIP 20
Warranty Period3 Years


Accessories

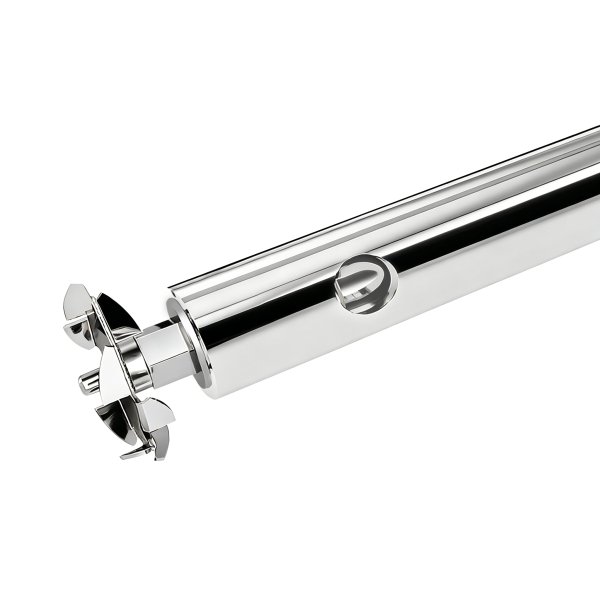

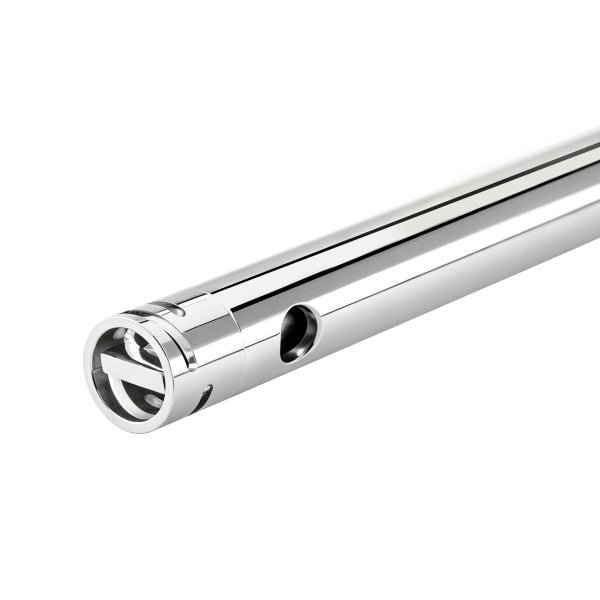

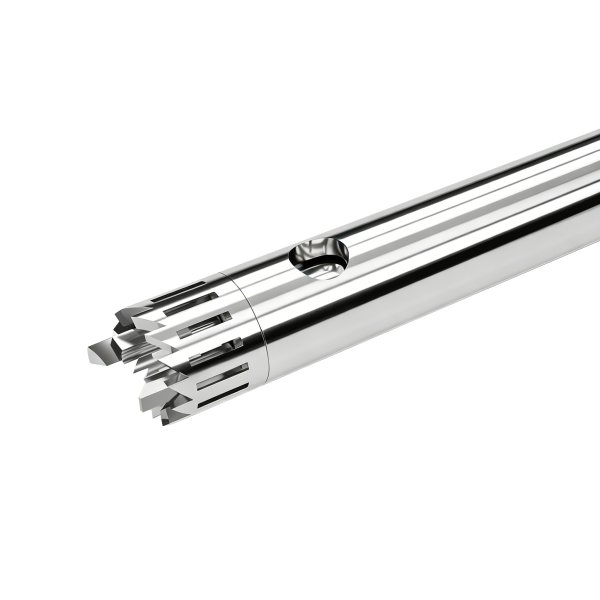

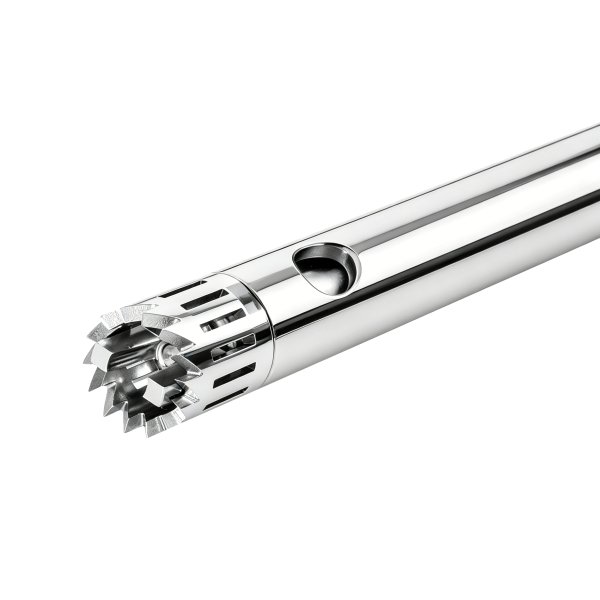

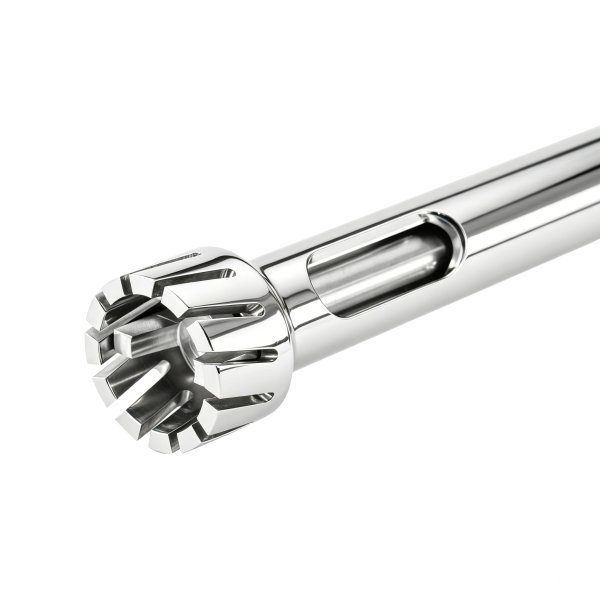

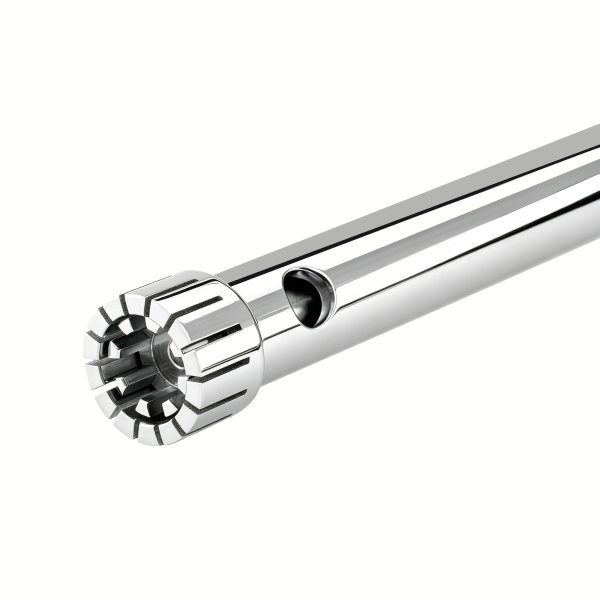

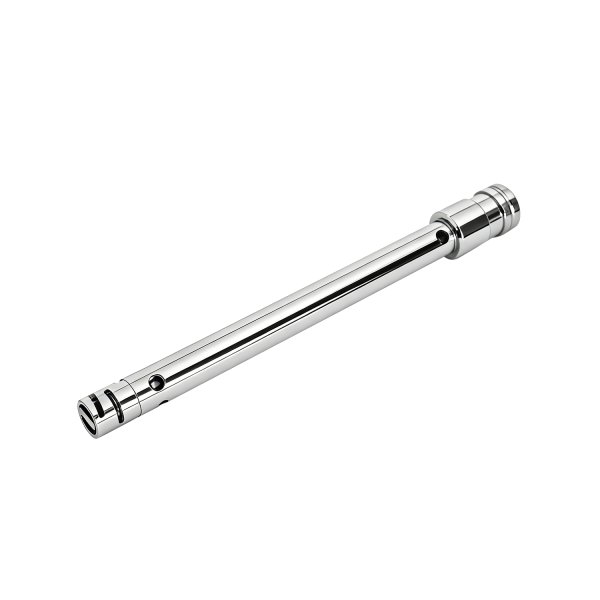

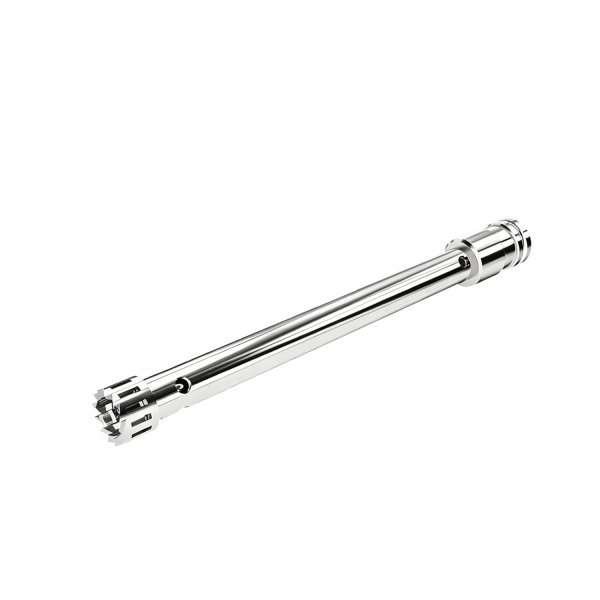

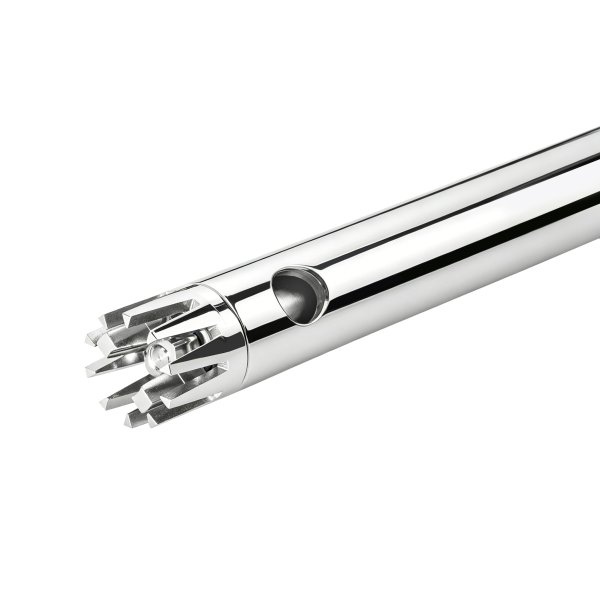

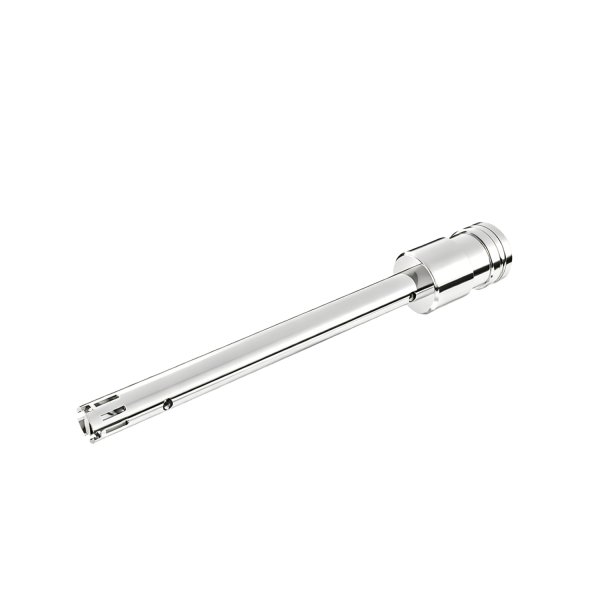

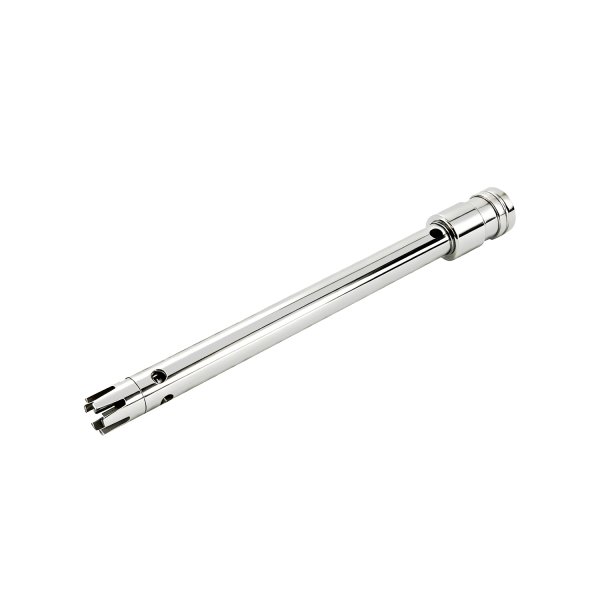

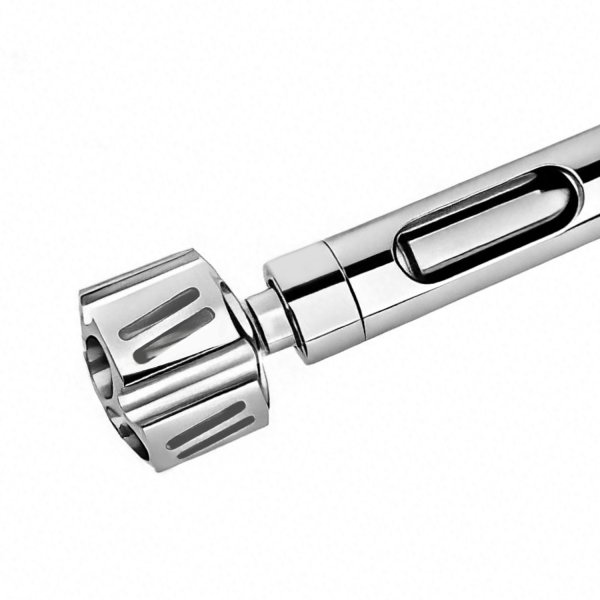

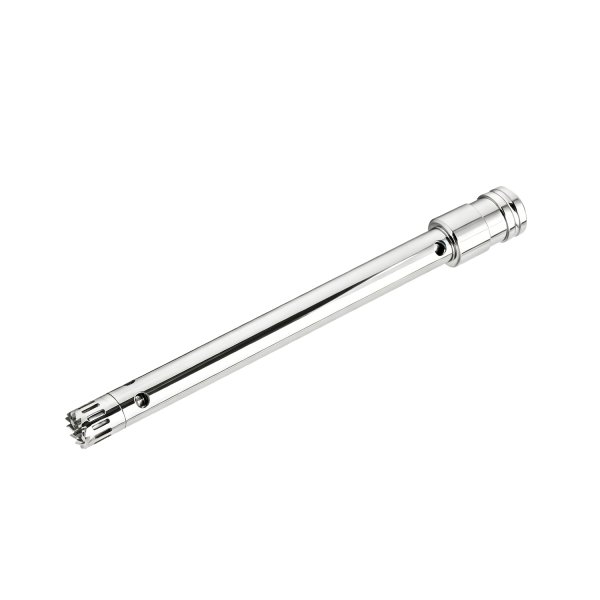

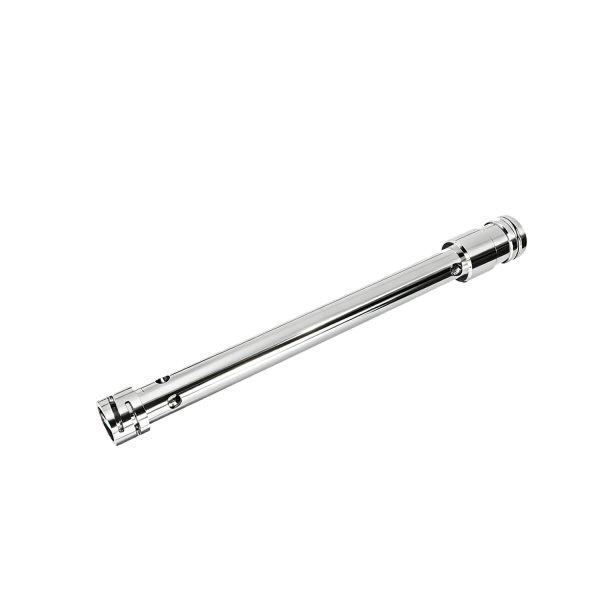

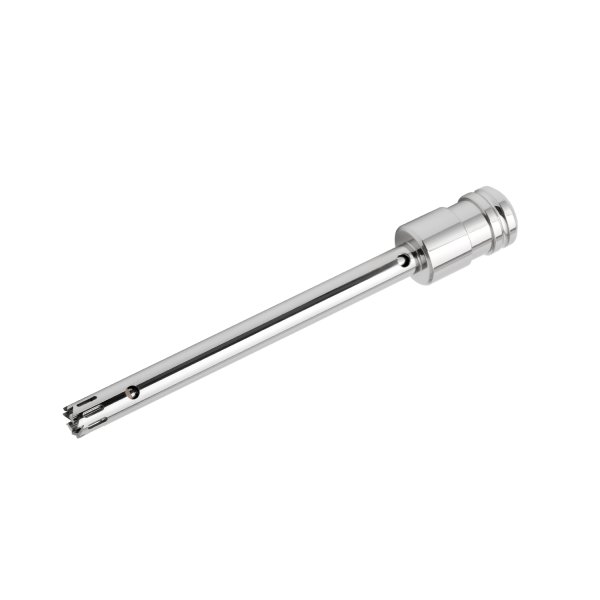

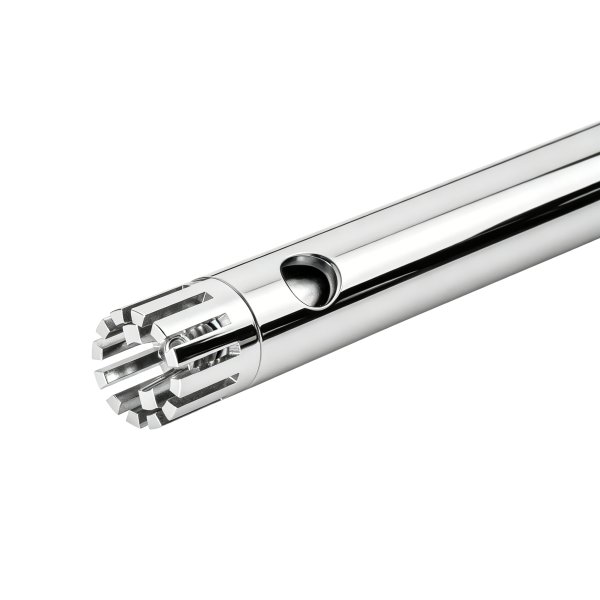

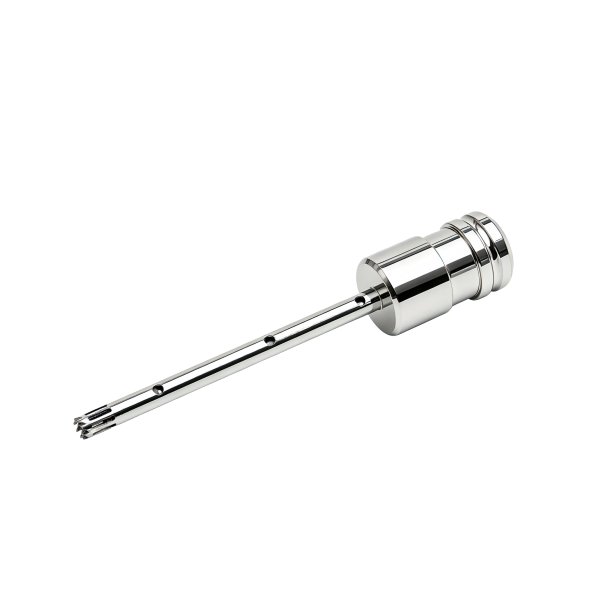

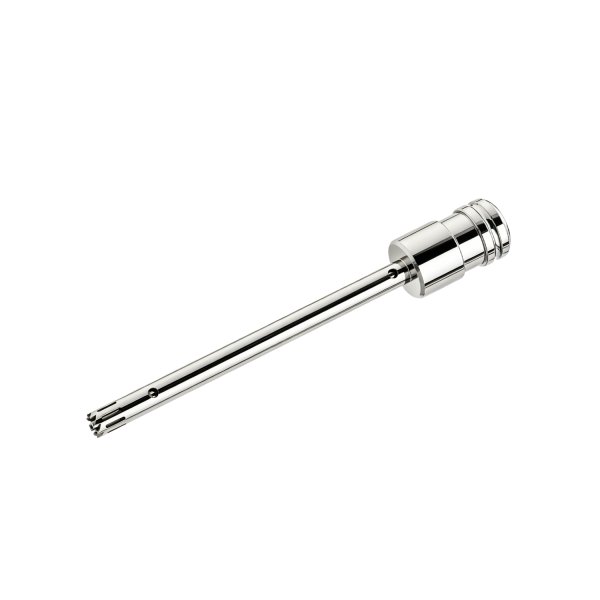

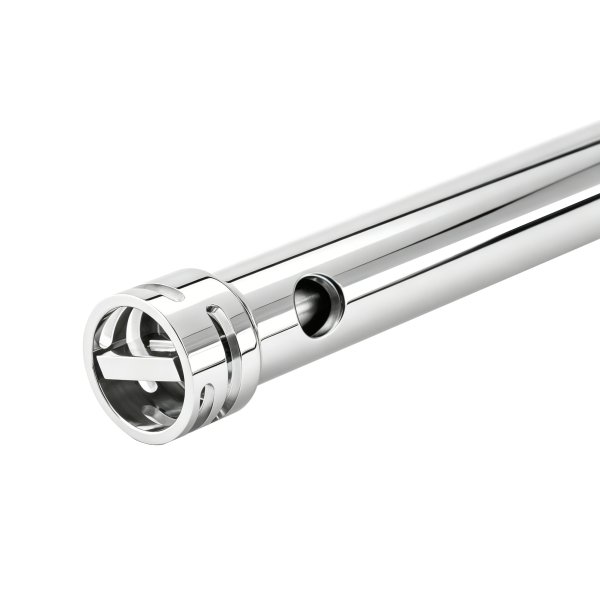

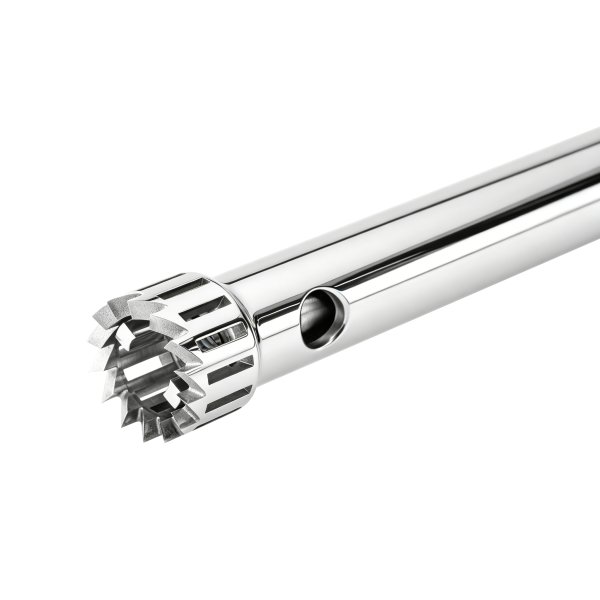

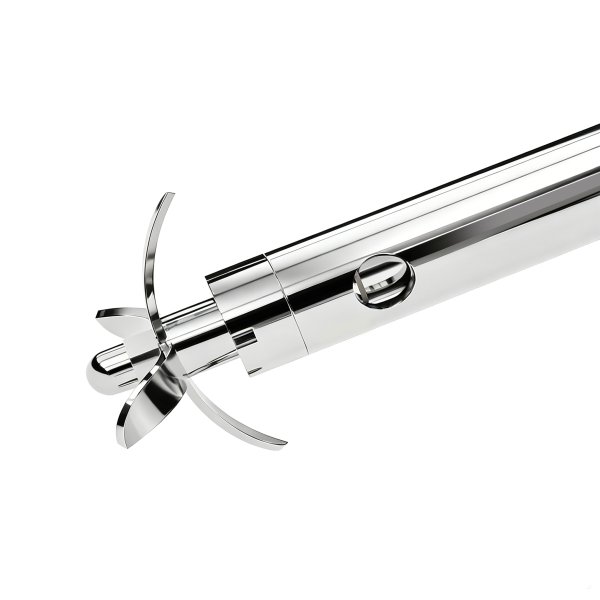

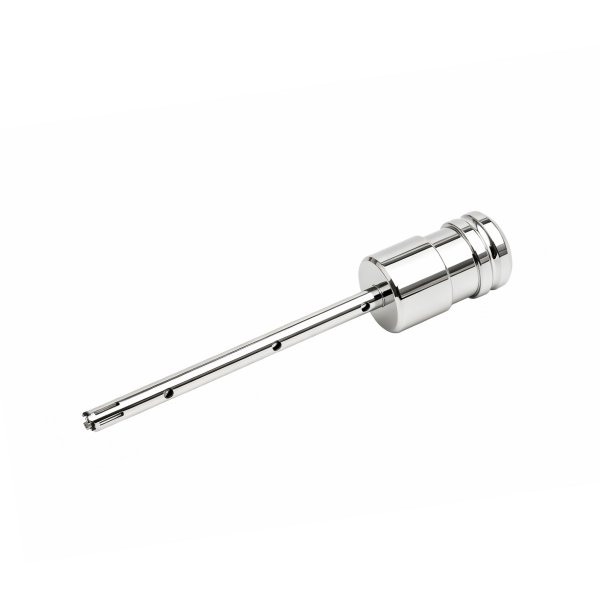

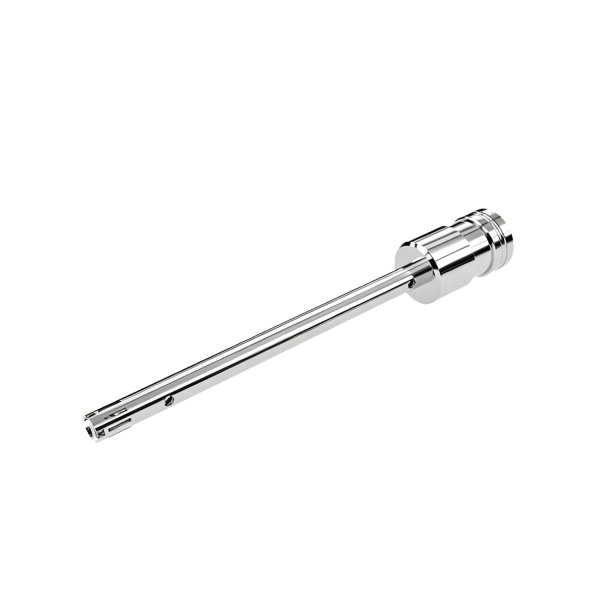

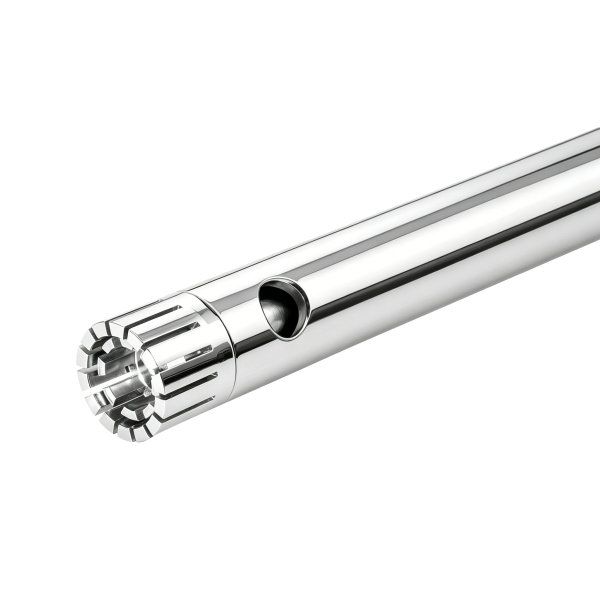

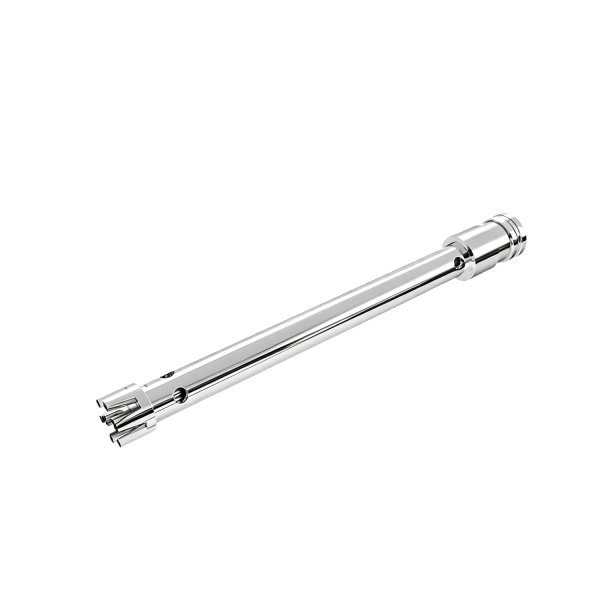

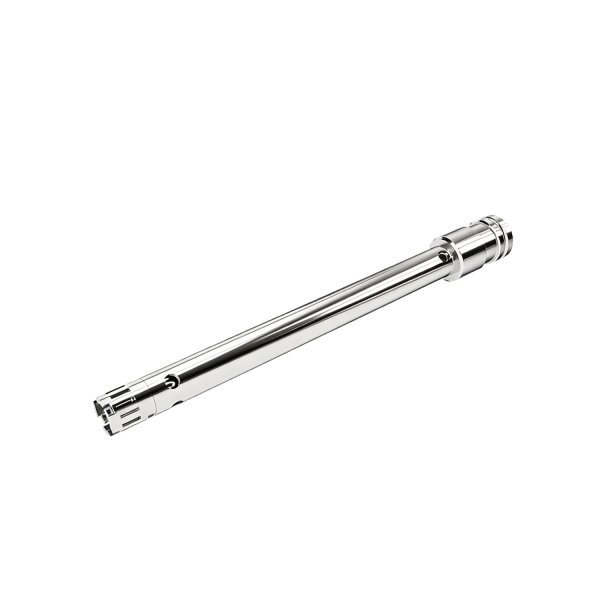

Dispersion tools

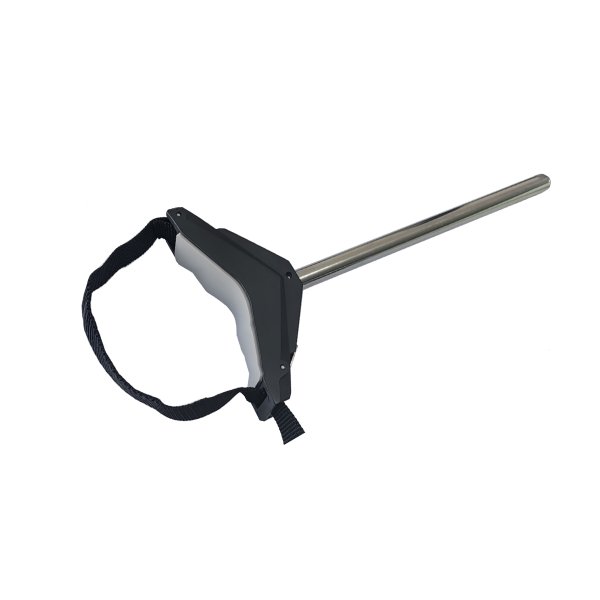

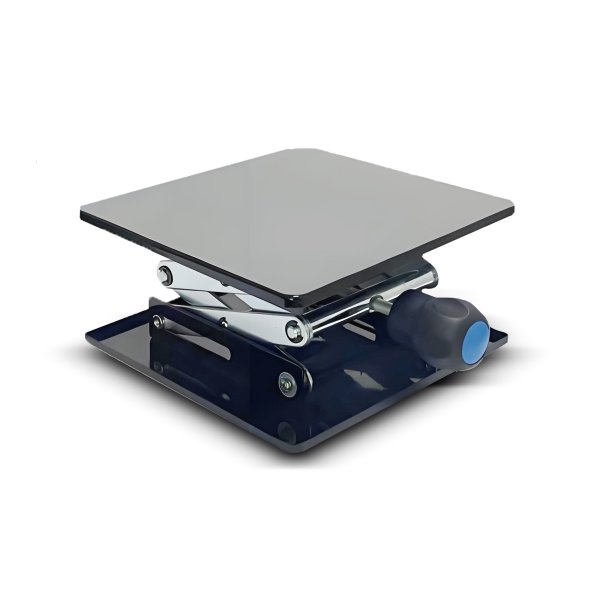

Stands

Parts
