X3000, Drive Units

Surging Power • Drive a Variety of Tools • First Choice for R&D Work

X3000 batch disperser is equipped with a 1050W motor, featuring high torque and a rotationalspeed ranging from 3,500 to 25,000 rpm. It can handle a single batch of up to 10 liters. Itspowerful performance, reliable quality and flexible application make it an ideal tool for samplepreparation and process exploration in laboratory analysis and R&D centers. It not only enhancesthe efficiency of research and development, but also provides a solid guarantee for the accuracyand repeatability of experimental results.

Description

Outstanding Quality

  • High-performance motor, powerful, efficient and moredurable

  • Low excitation impedance, low heat generation duringlong-term operation

Speed

  • Load constant speed tech, dynamic viscositycompensation for stable speed

  • Wide speed range for low & high-speed homogenization

Safety

  • Soft start ensures smooth start-up and motorprotection

  • PTC temperature monitoring, motor overheat protection,safe and reliable

  • ClickLock quick-plug interface makes itconvenient andfast to install tools

Dispersion Tools

  • 50 types of tools to meet the needs of diverse samples(standard /serrated /fiber /turbulent /emulsified, etc.)

  • Specially made Polyflon™ PTFE shaft sleeve, excellentwear resistance and chemical stability

  • Resistant to chemical, steam and dry heat sterilization

Quality Assurance

  • CE certification; 3-year warranty

Technical Data

ModelX3000
Cat. No.  22271.02

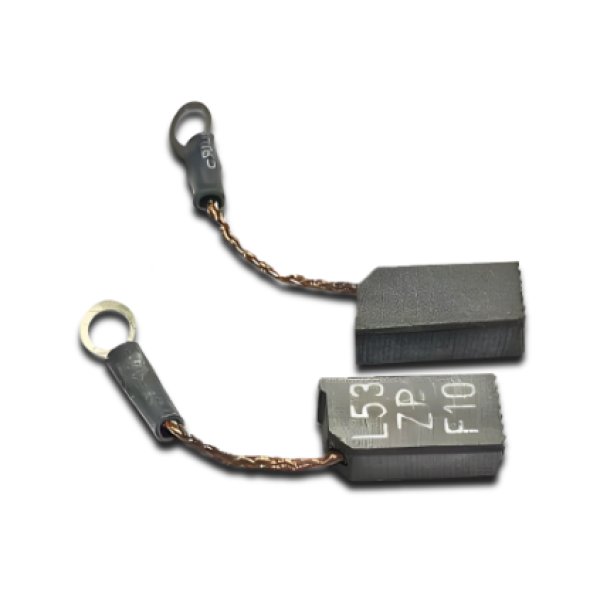

Drive MotorCarbon Brush
Input/output Power1050/660W
Speed Range3500~25000rpm; 6th Gear
Speed DisplayScale Indication
GovernorMicroprocessor
Soft StartSupport
Overheat ProtectionSupport
Overload ProtectionSupport
Volume Range(H₂O)0.5~10000ml
Maximum Viscosity5000mPa.s
Maximum Line Speed35m/s
Blade DiameterØ5,7,10,12,14,18,20,25,30,35mm
No-load Noise75dB(A)
Sample-contacting MaterialAISI 316L/PTFE
Contact With Sample Solution PH2~13
Processing Type*Batch/Continuous Type
Arm DiameterØ16mm
Arm Length210mm
Dimensions(Driver)75×95×310mm
Weight2.5kg
Working Environment5~40℃,≤85%RH
Rated VoltageAC 220~240V,50/60Hz
Protection LevelIP 20
Warranty Period3 Years
